Industrial Pulse Jet Vacuum Cleaner Concrete Bag Filter Dust Collector

                     Pulse Jet  Bag Filter Type Dust CollectorCharacteristicsThe dust collector adopts the technology of separating chamber wind stoppingpulse and jet cleaning technology, which overcome the disadvantages of the normal pulse bag filter and the separ

Featured Products

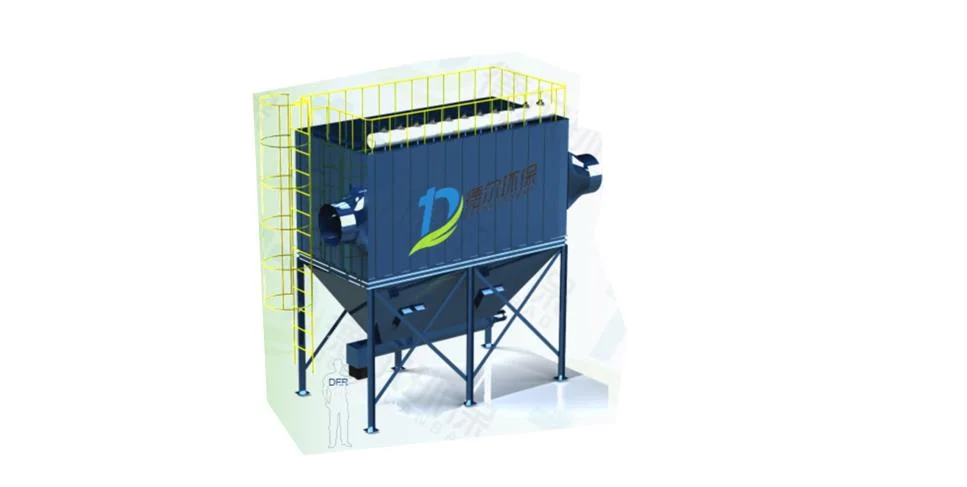

                     Pulse Jet  Bag Filter Type Dust Collector

Characteristics

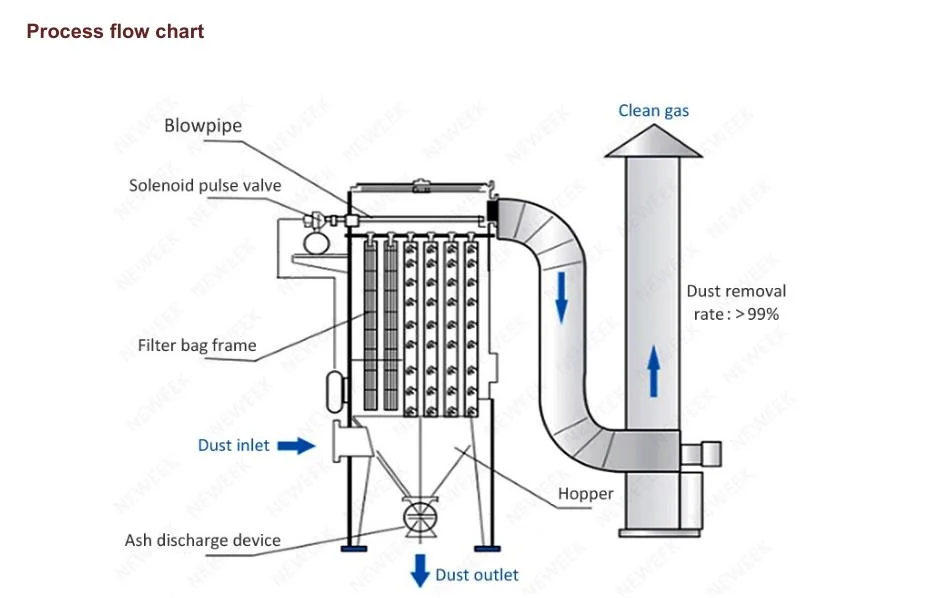

The dust collector adopts the technology of separating chamber wind stopping
pulse and jet cleaning technology, which overcome the disadvantages of the normal pulse bag filter and the separating chamber back blowing dust collector. This type dust removal ability is strong and high efficiency, low emission concentration, little air leakage rate, less energy consumption, less steel consumption, less floor space, stable and reliable operation and good economic benefit.

As adopting the separating room wind stopping pulse and jet cleaning, jetting one time can achieve the purpose of completely dust removal, so the cleaning cycle extension will reduce the energy consumption and the consumption of compressed air can be greatly reduced. At the same time, the fatigue degree of the filter bag and the pulse valve is also reduced accordingly, thus doubling the life service of the filter bag and valves.


Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Maintenance and repairing of bags can be carried out in separate rooms under the condition of non-stop system fan and normal operation of the system.

The filter bag mouth adopts elastic expansion ring with good sealing performance, fixed and reliable.  The keel of the filter bag adopts polygonal, which reduces the friction between the filter bag and the keel, prolongs the life service of the dusting cloth bag and easily remove the cloth bag.

Pulling out the bag way. After the frame is pulling out when changing the bag, the dirty bag is put into the lower part dust hopper of the box and takes out from the entrance, which improves changing bag operating condition.

Air tight design for the box body, and the checking door adopts the excellent sealing material,
Kerosene lead detection during manufacturing process with very low air leakage rate.



Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector



Model



Exhaust volume
m3/h
Filter wind speed m/minFilter area
m2
Filter  bag
PCS
ResistanceDust
concentration
g/m3
Insulation layer area
m2
DER32-36900






1.2-2.0
9396






1470-1770
 26.5
DER32-4893012412834
DER32-51116015516041
DER32-61339018619248.5
DER64-41780024825670
DER64-52230031032094
DER64-626700372384118
DER64-731200434448142
DER64-835700496512166
DER96-426800372384 110
DER96-533400465480120
DER96-640100557576130
DER96-746800650672140
DER96-853510744768150
DER96-960100836864160
DER96-2*566900929960175

Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector

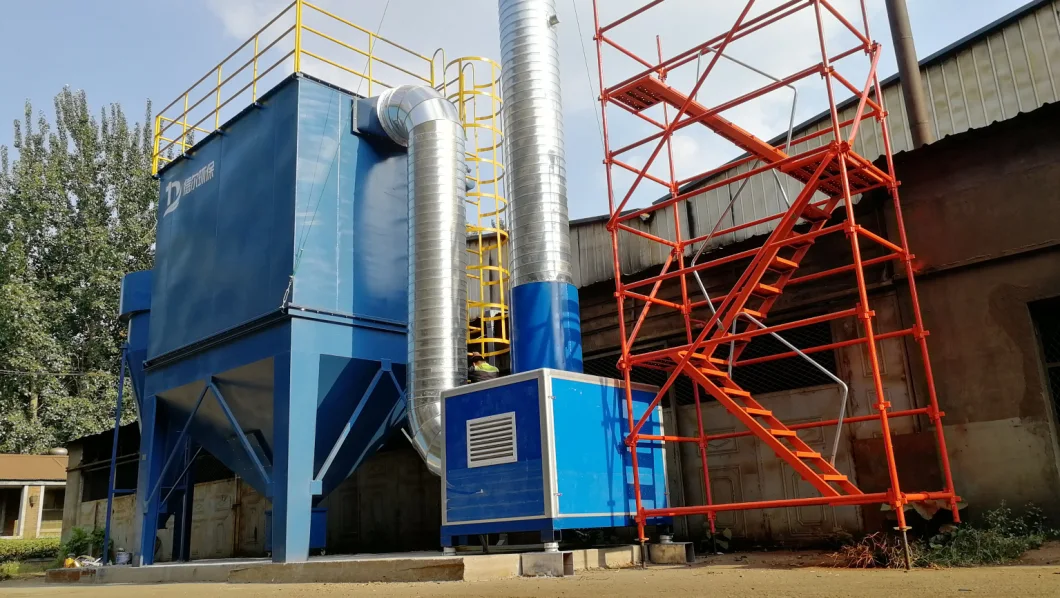

Project case
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor CollectorIndustries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector

Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
Industries Pulse-Jet Dust Suction Machine Concrete Bag Filter Dust Extractor Collector
